All-in-One Heating and Cooling Equipment

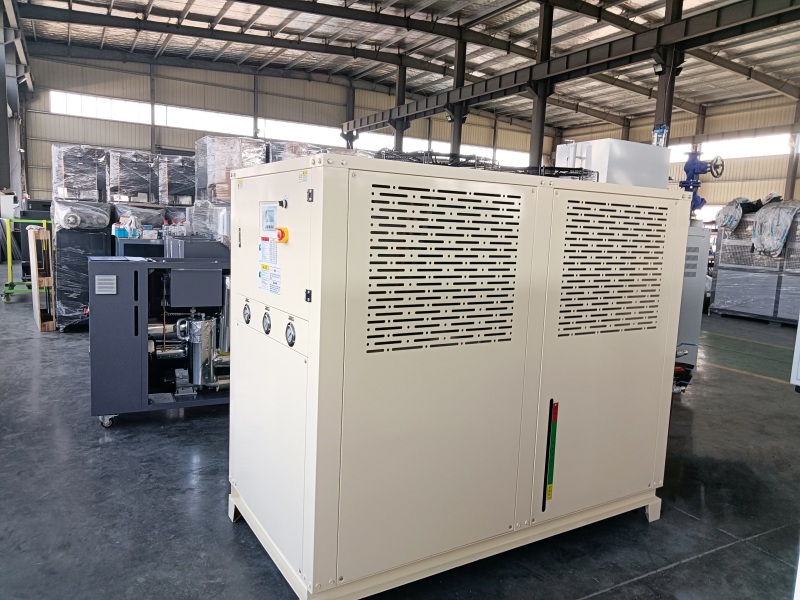

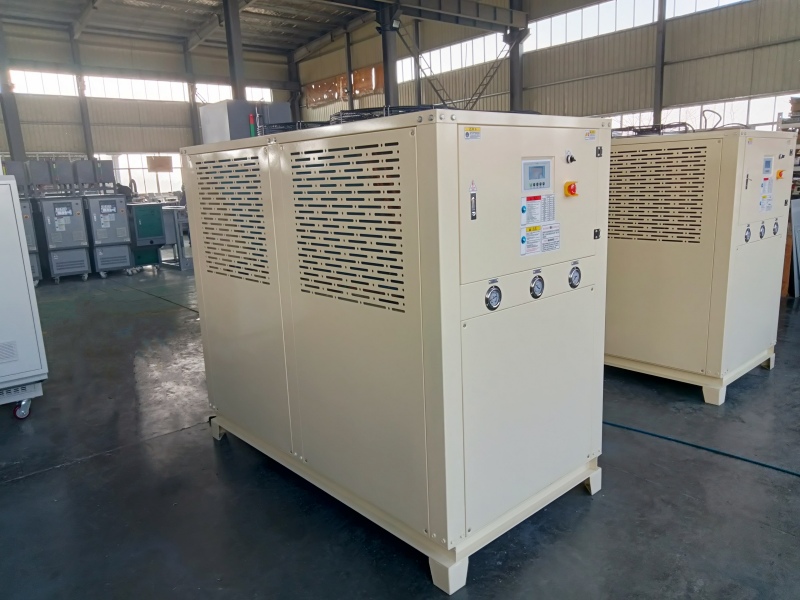

Integrated Cooling and Heating Unit For New Energy Industry

The refrigerant capacity of the HCH-05W(A) chiller heater unit is 9.59 kw.

Model :
HCH-5W(A)
Compressor Type :
Fully Enclosed Rotary Or Piston Type
Compressor Power :
3.75 kw
Shipping Port :
Shanghai Port, China
Warranty :
12 Months
Range Of Temperaure Control :
3℃- 98℃
Refrigerant Capacity :
15.91 kw

Inquiry now

Product Details

The integrated cooling and heating unit is a temperature control device that integrates heating and cooling functions. It is widely used in various occasions that require precise temperature control. It integrates heating, cooling, and constant temperature control. It is often used in reactors, fermentation tanks, foaming machinery, pharmaceuticals, chemicals and other industries.

With the rise of the new energy industry in recent years, the application of combined cooling and heating machine in the new energy industry has become more and more extensive. Such as roller pressing equipment, slurry carts, lithium-ion battery electrode, calendering machinery, coating Machinery etc.

Features Of Hengde Integrated Cooling And Heating Unit：

The temperature can be controlled within a range of 4 to 120℃, and the control accuracy is ±1℃；
Adopt stainless steel insulated water tank；
Adopt imported compressors；
Anti-freezing protection device, over-temperature protection device；
The refrigerant adopts R22, R134a, R410, R407, and R404, with good refrigeration effect；
The refrigeration circuit is controlled by high and low pressure switches；
Both the compressor and the pump have overload protection；
Shell and tube condenser has fast heat conduction and excellent heat dissipation effect；
Plate evaporator has a small volume and takes up little space；
Easy to operate, simple in structure, and easy to maintain.

Model And Technical Parameter：

Model	Unit		HCH-5W(A) Integrated Cooling And Heating Machine
Range Of Temperature Controller			3℃-98℃
Refrigerant Capacity		Kcal/h	13690
Refrigerant Capacity		Kw	15.91
Power Supply			3 phs, 380V, 50hz. (Can be customized)
Compressor	Type		Fully Enclosed Rotary Type （Piston）
Compressor	Power	Kw	3.75
Cooling Water	Water Flow	m³/h	3.42
	Water Resistance	Kpa	34
	Pipe Diameter	Inch	G1
Chilled Water	Water Flow	m³/h	2.74
	Water Resistance	Kpa	0.065
	Pipe Diameter	L	G1
Cold Water Pump	Power	Kw	0.75
Cold Water Pump	Maximum Head	M	200
Hot Water Pump	Power	Kw	0.75
Hot Water Pump	Maximum Head	M	200
Heating Energy		KW	6

Our Advantages:

1 - The Factory We Own

Specializing in water mold temperature controller and oil mold temperature controller design, production and sales more than 10 years, with area of 15000sqm,over 150 employees.
The engineering team has an average of 15 years of experience in industrial refrigeration. The sales team has an average of 8 years of experience in the field..
We always provide customized solutions according to specific requirements. Our quality control process consists of three steps: incoming quality control, process quality control, and outgoing quality control. All products come with a 12-month warranty. During the warranty period, if any problem is caused by defects in the mold temperature controller itself, we will offer services until the problem is resolved.
