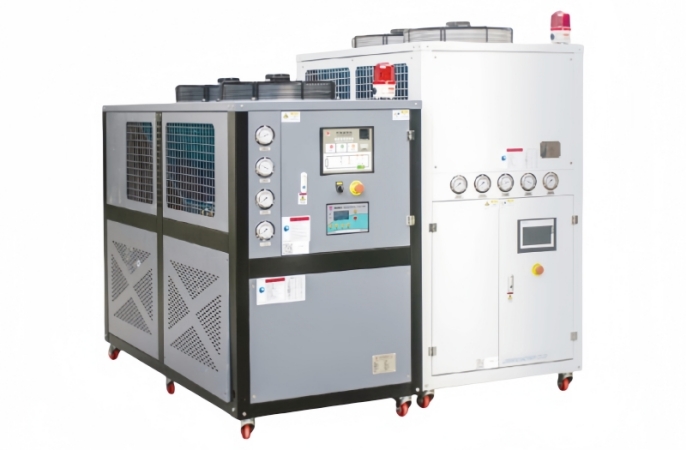

Industrial Hot and Cold Integrated Temperature Control Chiller Machine

The Hengde HCH-03W(A) cold and hot all in one machine possess a refrigerant capacity of 9.59 kW.

  • Model :

    HCH-3W(A)
  • Warranty :

    12 Months
  • Range Of Temperaure Control :

    3℃- 98℃
  • Refrigerant Capacity :

    9.59 kw
  • Compressor Type :

    Fully Enclosed Rotary Or Piston Type
  • Compressor Power :

    2.25 kw
  • Shipping Port :

    Shanghai Port, China

The integrated heating and cooling machine is a temperature control device that combines heating and cooling functions. It is widely utilized in various scenarios where precise temperature control is required. The integrated heating and cooling machines integrate heating, cooling, and constant temperature control and is extensively applied in industries such as reactors, fermentation tanks, foaming machinery, pharmaceuticals, and chemical engineering.



Features Of Hengde Integrated Heating And Cooling Machine
  • Temperature control range 4-120℃, control accuracy ±1℃.
  •  Stainless steel insulation water tank.
  • Imported compressor.
  • Anti-icing protection device, over-temperature protection device.
  • Refrigerant uses R22, R134a, R410, R407, R404,good refrigeration effect.
  • Refrigeration circuit uses high and low pressure switch control.
  • Compressor and pump have overload protection.
  • Shell and tube condenser, fast heat conduction, good heat dissipation effect.
  • Plate evaporator, small size, small space.
  • Easy to operate, simple structure, easy to maintain.

Cold And Hot Temperature Controllers



Model And Technical Parameter:

Model Unit HCH-3W(A) Integrated Heating And Cooling Machine
Range Of Temperature Controller      3℃-98℃
Refrigerant Capacity   Kcal/h  8251
Kw  9.59
Power Supply      3 phs, 380V, 50hz. (Can be customized)
Compressor Type    Fully Enclosed Rotary Type (Piston)
Power Kw  2.25
Cooling Water Water Flow m³/h  2.06
Water Resistance Kpa  28
Pipe Diameter Inch  G3/4
Chilled Water Water Flow m³/h  1.65
Water Resistance Kpa  0.038
Pipe Diameter L  G3/4
Cold Water Pump Power Kw  0.375
Maximum Head M  200
Hot Water Pump Power Kw  0.375
Maximum Head M  200
Heating Energy



KW

  6



Our Advantages:

1 - The Factory We Own

  • Specializing in water mold temperature controller and oil mold temperature controller design, production and sales more than 10 years, with area of 15000sqm,over 150 employees.
  • The engineering team has an average of 15 years of experience in industrial refrigeration. The sales team has an average of 8 years of experience in the field..
  • We always provide customized solutions according to specific requirements. Our quality control process consists of three steps: incoming quality control, process quality control, and outgoing quality control. All products come with a 12-month warranty. During the warranty period, if any problem is caused by defects in the mold temperature controller itself, we will offer services until the problem is resolved.



2 - The Partners we cooperate.

Nanjing Hengde Electrical Equipment Co.,LTD



3 - The Glowing Reviews from Numerous Customers.

Nanjing Hengde Electrical Equipment Co.,LTD
