Explosion-Proof Mold Temperature Controllers

Explosion-Proof Mould Temperature Controllers

Gas Explosion Proof Mold Temperature Controllers

China Gas Explosion-Proof Oil Mold Temperature Controller Machine Manufacturer

The heating capacity of the Hengde HOC-20FB model gas explosion-proof mold temperature controllers can be 18kw or 24kw.

Model :
HOC-20FB
Heating Capacity :
18kw, 24kw
Heat Transfer Medium :
Heat Conducting Oil
Cooling Method :
Indirect Cooling
Temperature Range :
Normal Temperature - 200℃（392℉）
Pump Power :
1.5 Kw

Inquiry now

Product Details

The explosion-proof mold temperature controller is a professional industrial temperature control device, which is mainly applied in special places such as those with flammable and explosive risks. It achieves precise control of the mold temperature through an intelligent control system and highly efficient heating and cooling technologies.

The Hengde gas explosion-proof mould temperature controller is frequently used in temperature control for injection molding, die-casting molding, carbon fiber new material compounding, printing and textile, reactor chemical engineering, calendering hot-melt adhesive rollers, hot-pressing molding SMC fiberglass molds, extrusion rollers, lithium battery new energy, oven drying, and non-standard customized temperature control equipment. Different explosion-proof level mold temperature controllers can be designed according to the explosion-proof grade characteristic data of the customer's usage site.

Mainly, the explosion-proof mould temperature controllers are classified into integral explosion-proof and local explosion-proof. The integral explosion-proof indicates that all mechanical components and electrical control apparatuses, such as the electrical control enclosure, heating tubes and circulation pumps, are designed with explosion-proof characteristics. The local explosion-proof chiefly pertains to the explosion-proofing of the electrical control enclosure.

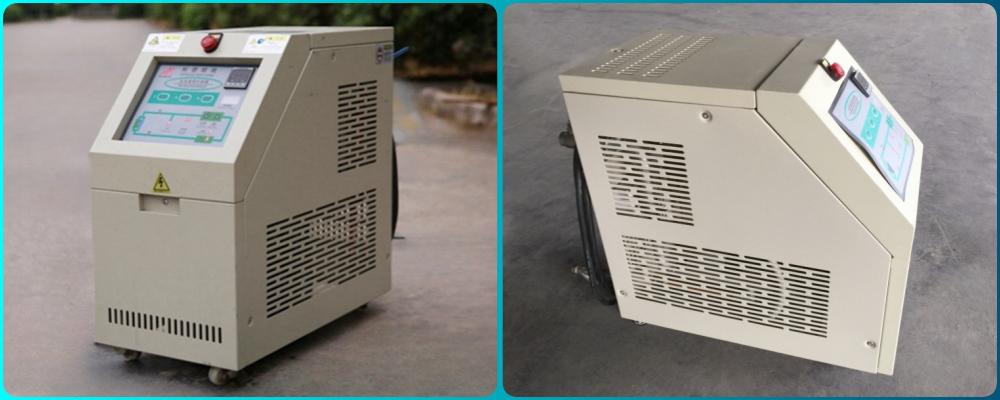

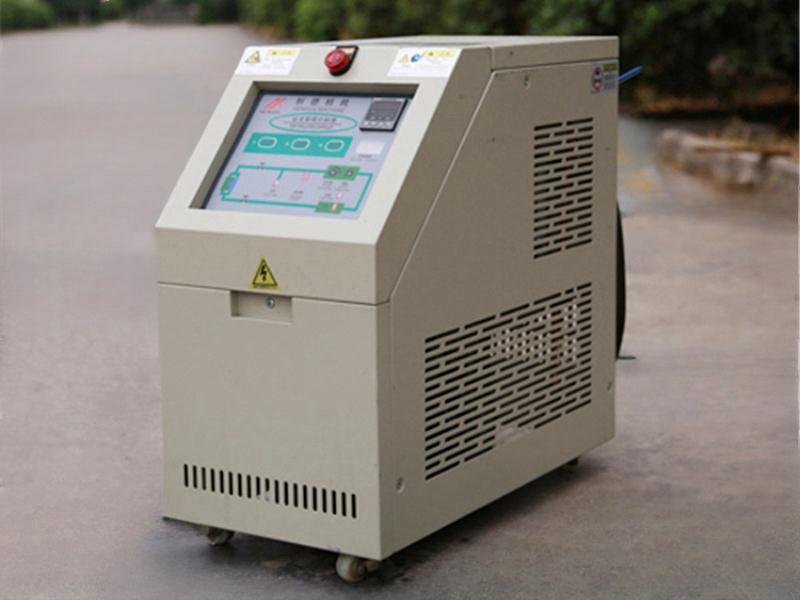

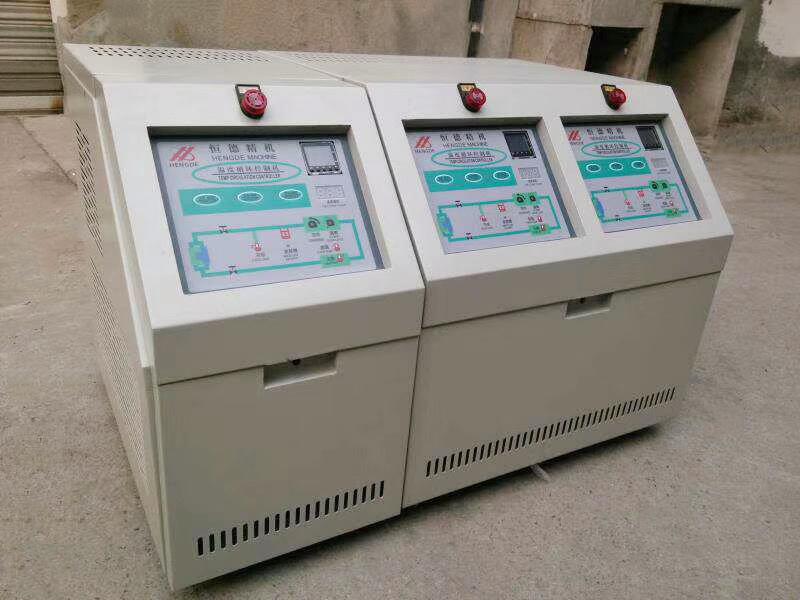

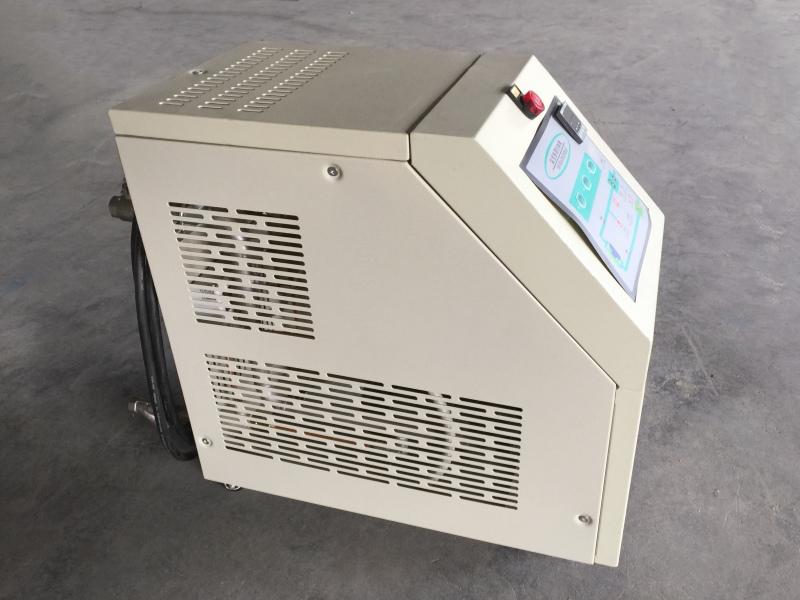

Explosion-proof Mold Temperature Controllers

Features of the Hengde Explosion-proof Mold Temperature Controllers:

1. Explosion-proof Level: The corresponding grade standard can be chosen according to the production circumstances of the customer.

2. Temperature Control Precision Degree: The Hengde explosion-proof mold temperature controller can realize a temperature control precision degree of ±1℃.

3. Heating Power Range: From 18kW to 150kW, it is customizable. Relevant selection suggestions can be given in accordance with the customer's production facilities.

Model And Technical Parameter：

Model	Unit	HOC-20FB Gas Explosion-proof Mold Temperature Controller
Temperature Range	℃ / ℉	Normal temperature - 200℃ （392℉）
Temperature Control Accuracy		PID ± 1℃
Power Supply		3 phs, 380V, 50hz. (Can be customized)
Heat Transfer Medium		Heat Conducting Oil
Cooling Method		Indirect Cooling
Heating Capacity	Kw	18 / 24
Pump Power	Kw	1.5
Pump Flow	m³/h	6.5
Pump Pressure	Kg/cm³	2.8
Max Power Consumption	Kw	25.5
Cooling Water Pipe	Inch	1/2
Circulation Water Pipe	Inch	1
Note: If the heating capacity of this model is not suitable for your product, please contact us and we can customize a solution.

Our Advantages:

1 - The Factory We Own

Specializing in water mold temperature controller and oil mold temperature controller design, production and sales more than 10 years, with area of 15000sqm,over 150 employees.
The engineering team has an average of 15 years of experience in industrial refrigeration. The sales team has an average of 8 years of experience in the field..
We always provide customized solutions according to specific requirements. Our quality control process consists of three steps: incoming quality control, process quality control, and outgoing quality control. All products come with a 12-month warranty. During the warranty period, if any problem is caused by defects in the mold temperature controller itself, we will offer services until the problem is resolved.
