Anti-explosion Mold Temperature Controllers

Mold Temperature Controller For Flour Mill

Anti-explosion Mold Temperature Controller Machine For Flour Mill

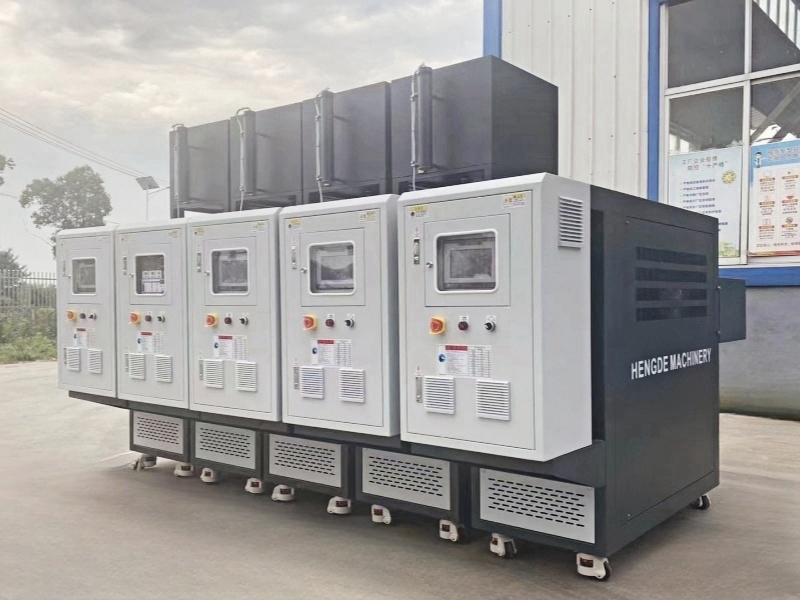

The Hengde HOC-75FB model anti-explosion mold temperature controller has a heating capacity of 50kw,60kw,75kw,80kw or 90kw.

Model :
HOC-75FB
Heating Capacity :
50kw, 60kw, 75kw, 80kw or 90kw
Heat Transfer Medium :
Heat Conducting Oil
Cooling Method :
Indirect Cooling
Temperature Range :
Normal Temperature - 200℃（392℉）
Pump Power :
5.5 Kw

Inquiry now

Product Details

The anti-explosion mold temperature controller is a professional industrial temperature control instrument, mainly used in specific sites with flammable and explosive risks. It attains precise control of the mold temperature through an intelligent control system and efficient heating and cooling mechanisms. Such as flour mills.

Chiefly, the anti-explosion mold temperature controller machine is divided into two classifications: explosion-proof for the entire machine and explosion-proof for a specific part. For the explosion-proof of the entire machine, all mechanical components and electrical control devices, such as the control box for electronics, heating tubes and circulating pumps, are made with explosion-proof designs. The explosion-proof for a specific part mainly focuses on the explosion-proofing of the electronic control box.

Features of Hengde Anti-explosion Mold Temperature Controller:

1. Explosion-proof Grade Standard: It can be selected in accordance with the customer's production environment.

2. Temperature Control Accuracy Standard: The Hengde explosion-proof mold temperature controller can reach a temperature control accuracy of ±1℃.

3. Heating Power Configuration: Ranging from 18kW to 150kW, it can be customized. Corresponding configuration suggestions can be provided for the customer's production equipment.

Model And Technical Parameter：

Model	Unit	HOC-75FB Anti-explosion Mold Temperature Controllers For Flour Mill
Temperature Range	℃ / ℉	Normal temperature - 200℃ （392℉）
Temperature Control Accuracy		PID ± 1℃
Power Supply		3 phs, 380V, 50hz. (Can be customized)
Heat Transfer Medium		Heat Conducting Oil
Cooling Method		Indirect Cooling
Heating Capacity	Kw	50 / 60 / 75 / 80 / 90
Pump Power	Kw	5.5
Pump Flow	m³/h	12.5
Pump Pressure	Kg/cm³	5.0
Max Power Consumption	Kw	81
Cooling Water Pipe	Inch	No
Circulation Oil Pipe	Inch	1-1/2
Note: If the heating capacity of this model is not suitable for your product, please contact us and we can customize a solution.

Our Advantages:

1 - The Factory We Own

Specializing in water mold temperature controller and oil mold temperature controller design, production and sales more than 10 years, with area of 15000sqm,over 150 employees.
The engineering team has an average of 15 years of experience in industrial refrigeration. The sales team has an average of 8 years of experience in the field..
We always provide customized solutions according to specific requirements. Our quality control process consists of three steps: incoming quality control, process quality control, and outgoing quality control. All products come with a 12-month warranty. During the warranty period, if any problem is caused by defects in the mold temperature controller itself, we will offer services until the problem is resolved.
