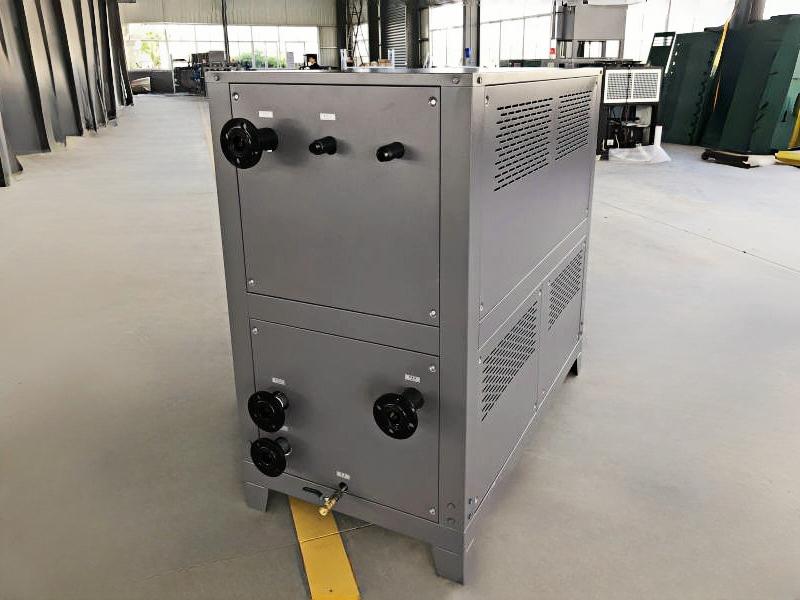

60kw 15ton 20hp Commercial Water Cooled Chiller System HC-20W

The cooling capacity of the Hengde HC-20W commercial water chillers are 60kW.

Model :
HC-20W
Cooling Capacity :
60 Kw, 20 hp, 15 ton
Input Power :
19.95 Kw
Refrigerant Type :
R22, R134a, R407c, 404a, 410a
Compressor Power :
7.5*2 Kw
Pump Power :
2.25 Kw

Inquiry now

Product Details

The HC-20W Water cooled chiller from Hengde, with a cooling capacity of 20hp (or 60kw water cooled chiller, 15 ton water cooled chiller, 20hp water cooled chiller), is commonly utilized in industries such as plastics & rubber, chemicals, marine, aluminum alloy die casting, construction,automotive,textile and surface treatment process. It precisely provides the temperature required for modern industrial production, thus greatly enhancing production efficiency and product quality.

Hengde 60kw Water Cooled Chiller Features：

1. Imported compressor, Panasonic / Copeland;

2. World famous brand parts: such Danfoss, PUNP, Schneider, Siemens;

3. Comprehensive safety protection system;

4. Can be OEM, customizable, and explosion-proof;

5. Well designed and reasonable pipelines.

Model And Technical Parameter：

Model	Unit		HC-20W Commercial Water Cooled Chiller System
Cooling Capacity	Kcal/h	50hz	51600
	Kcal/h	60hz	61800
	Kw	50hz	60
	Kw	60hz	72
Input Power	Kw		19.95
Power Supply			3 phs, 380V, 50hz. (Can be customized)
Refrigerant	Type		R22, R134a, R407c, 404a, 410a
Refrigerant	Control Mode		Outside the Balanced Thermal Expansion Valve
Compressor	Type		Fully Enclosed Vortex Type （Piston）
Compressor	Power	Kw	7.5*2
Condenser	Type		Shell And Tube ( Stainless Steel Plate Condenser)
	Cooling Water Flow	m³/h	13.9 / 16.3
	Pipe Diameter	Inch	2''
Evaporator	Type		Tank Coil (Dry Type Shell and Tube / Stainless Steel Plate Evaporator)
	Frozen Water Flow	m³/h	10.3 / 12.11
	Water Tank Capacity	L	290
	Pipe Diameter	Inch	2-1/2''
Pump	Power	Kw	2.25
Pump	Maximum Head	M	20
Safety Protection			Compressor Overheating、Over Current、High and Low Pressure 、Over Temperature、Traffic、Phase Sequence / Phase Loss Protection、Exhaust Overheating Protection
Size (LDH)		mm	16006501370
Weight		Kg	680

Notes：

If this model is not suitable for your existing products, please inform us of the following information, and we can accurately recommend a suitable model to you:

1. Application industry;

2. Cooling capacity (if you don't know the specific cooling capacity, please kindly provide the machine flow, inlet and outlet temperature of the equipment);

3. Ambient temperature;

4. Refrigerant type, R22, R134a, R407c or other, please specify;

5. Voltage;

6. Any other special requirements, such as pump flow, pressure requirements, explosion-proof requirements, etc.
