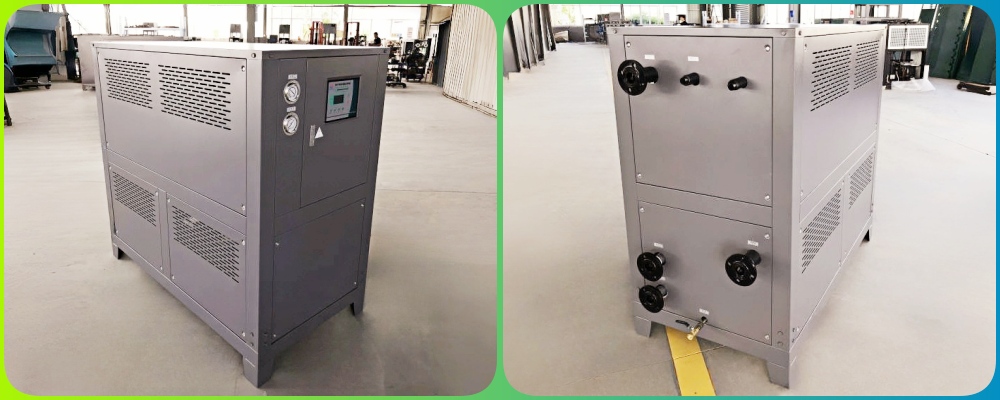

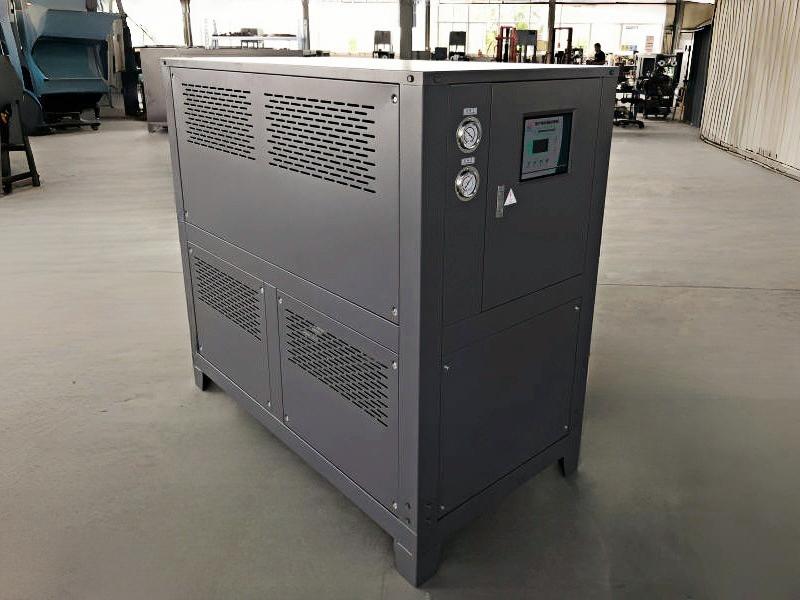

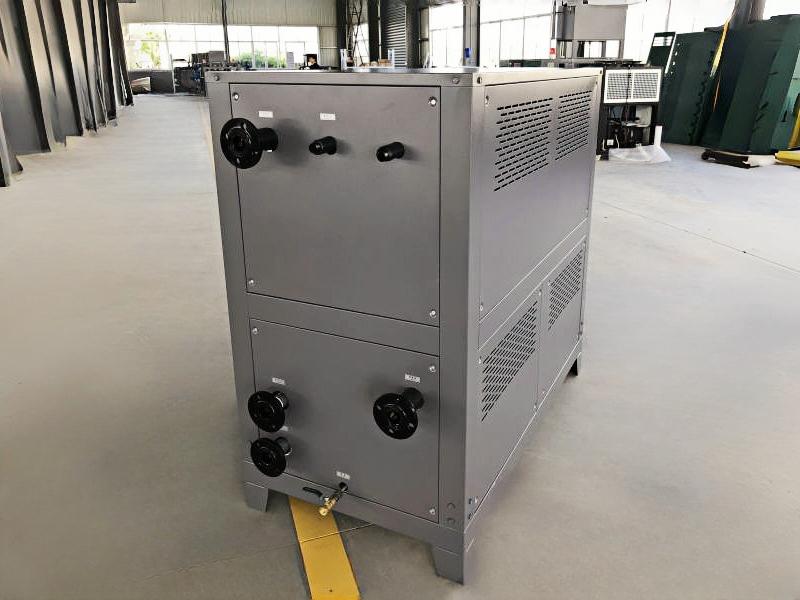

30kw 8ton 10hp Scroll Compressor Water Cooled Chiller HC-10W

The cooling capacity of the Hengde HC-10W scroll water chiller is 30kW.

Model :
HC-10W
Cooling Capacity :
30 Kw, 1 0hp, 7 ton, 8 ton
Input Power :
9.85 Kw
Refrigerant Type :
R22, R134a, R407c, 404a, 410a
Compressor Power :
3.75*2 Kw
Pump Power :
0.75 Kw

Inquiry now

Product Details

Hengde HC-10W Water cooled chiller, with its cooling capacity of 10hp (also called 30kw water cooled chiller, 10hp water cooled chiller and 8 ton water cooled chiller), is extensively used in sectors such as plastics, rubber, chemicals, electronics, electroplating, food and beverage, and printing. The liquid crystal display microcomputer controller can accurately control the water temperature. It features an English and Chinese interface, offering simple and convenient operation and complete control functions.

Hengde 30kw Water Cooled Chiller Features：

1. Imported famous pants compressor,Panasonic/ Copeland;

2. Famous brand electricity and other spare parts: such Danfoss, PUNP, Schneider, Siemens;

3. With high efficiency condener and evaporator;

4. Well-known brand water pump;

5. Explosion-proof model can also be customized;

6. Chinese and English operation interface, simple and easy to operate.

Model And Technical Parameter：

Model	Unit		HC-10W Water Cooled Scroll Chillers
Cooling Capacity	Kcal/h	50hz	25800
	Kcal/h	60hz	30900
	Kw	50hz	30
	Kw	60hz	36
Input Power	Kw		9.85
Power Supply			3 phs, 380V, 50hz. (Can be customized)
Refrigerant	Type		R22, R134a, R407c, 404a, 410a
Refrigerant	Control Mode		Outside the Balanced Thermal Expansion Valve
Compressor	Type		Fully Enclosed Vortex Type （Piston）
Compressor	Power	Kw	3.75*2
Condenser	Type		Shell And Tube ( Stainless Steel Plate Condenser)
	Cooling Water Flow	m³/h	6.67 / 7.7
	Pipe Diameter	Inch	1 1/2''
Evaporator	Type		Tank Coil (Dry Type Shell and Tube / Stainless Steel Plate Evaporator)
	Frozen Water Flow	m³/h	5.2 / 6.2
	Water Tank Capacity	L	150
	Pipe Diameter	Inch	1 1/2''
Pump	Power	Kw	0.75
Pump	Maximum Head	M	20
Safety Protection			Compressor Overheating、Over Current、High and Low Pressure 、Over Temperature、Traffic、Phase Sequence / Phase Loss Protection、Exhaust Overheating Protection
Size (LDH)		mm	14006001280
Weight		Kg	320

Notes：

If this model is not suitable for your existing products, please inform us of the following information, and we can accurately recommend a suitable model to you:

1. Application industry;

2. Cooling capacity (if you don't know the specific cooling capacity, please kindly provide the machine flow, inlet and outlet temperature of the equipment);

3. Ambient temperature;

4. Refrigerant type, R22, R134a, R407c or other, please specify;

5. Voltage;

6. Any other special requirements, such as pump flow, pressure requirements, explosion-proof requirements, etc.
