-10℃ 3hp Mini Low Temperature Air Cooled Chillers

The cooling capacity of the Hengde HL-03A mini low temperature air cooled chillers are 3.92 kW.

Model :
HL-03A
Cooling Capacity :
3.92kw
Input Power :
3.18 kw
Refrigerant Type :
R22 , R134a , R407c , 404a, 410a
Compressor Power :
2.25 Kw
Pump Power :
0.75 Kw

Inquiry now

Product Details

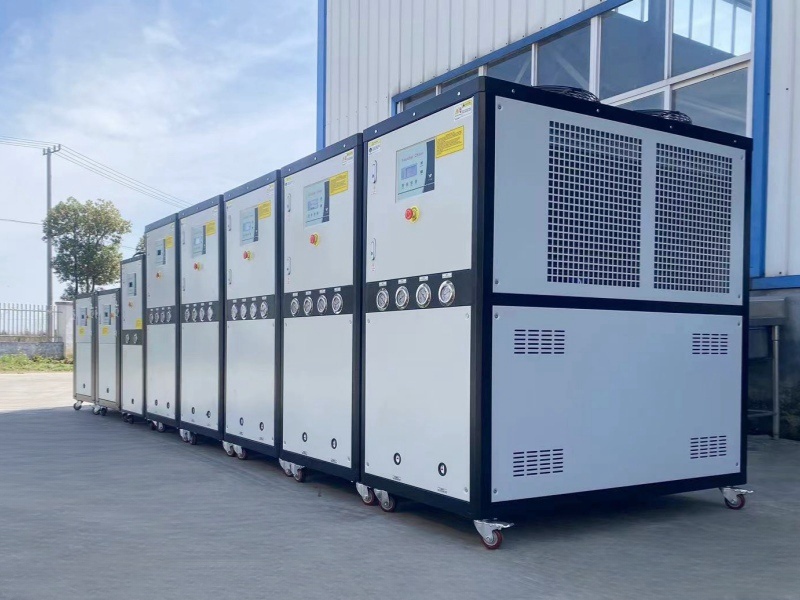

Hengde mini low temperature air cooled chiller is a cooling device that can provide constant temperature, constant flow and constant pressure. The HL-03A model low temperature mini air cooled chiller units can reach a minimum temperature of - 10℃. Each product is designed and manufactured with industrial grade components and can operate under the harshest conditions. The capacity ranges from 5hp to 40hp.

The low temperature chiller units are often used in food processing, industry, pharmacy, textile, electronics and other industries. They can also be applied to commercial and industrial cooling systems that require refrigeration and various special low temperature requirements.

Low Temperature Chillers

-10℃ 3hp Air cooled Chiller Features：

(1). Use refrigerants such as R404A, R410a, R22/R407C, etc; to meet the refrigeration temperature and environmental protection requirements.

(2). Copper tubes adopt the seamless welding method.

(3). RS4B5 communication function to achieve automatic management (selected).

(4). Use imported and exported advanced components with long service life.

(5). Electrical uses OMRON, FUJI, TE, LG, MOELLER, ABB, WEST.

(6). Control method: Use imported microcomputer or PLC control (selected).

(7). The compressors of the units are imported brand .ames, including French Maneurop, American Copeland/Carrier, and German Bitzer, among other medium and low temperature compressors.

Model And Technical Parameter：

Model	Unit		HL-03A Mini Low Temperature Air Cooled Chillers
Cooling Capacity	Kcal/h	50hz	2514
	Kcal/h	60hz	3012
	Kw	50hz	3.92
	Kw	60hz	3.5
Input Power	Kw		3.18
Power Supply			3 phs, 380V, 50hz. (Can be customized)
Refrigerant	Type		R22, R134a, R407c, 404a, 410a
Refrigerant	Control Mode		Outside the balanced thermal expansion valve
Compressor	Type		Fully enclosed vortex type (Piston)
Compressor	Power	Kw	2.25
Condenser	Type		High Performance Copper Sleeve Aluminum Fin + Low Noise Outer Rotor Fan
Evaporator	Type		Shell and Tube
	Frozen Water Flow	m³/h	1.41 / 1.69
	Pipe Diameter	Inch	1''
Pump	Power	Kw	0.75
Pump	Maximum Head	M	20
Safety Protection			Compressor Overheating, Over Current, High and Low Pressure, Over Temperature, Traffic, Phase Sequence / Phase Loss Protection, Exhaust Overheating Protection

Our Advantages:

1 - The Factory We Own

Specializing in water mold temperature controller and oil mold temperature controller design, production and sales more than 10 years, with area of 15000sqm,over 150 employees.
The engineering team has an average of 15 years of experience in industrial refrigeration. The sales team has an average of 8 years of experience in the field..
We always provide customized solutions according to specific requirements. Our quality control process consists of three steps: incoming quality control, process quality control, and outgoing quality control. All products come with a 12-month warranty. During the warranty period, if any problem is caused by defects in the mold temperature controller itself, we will offer services until the problem is resolved.
